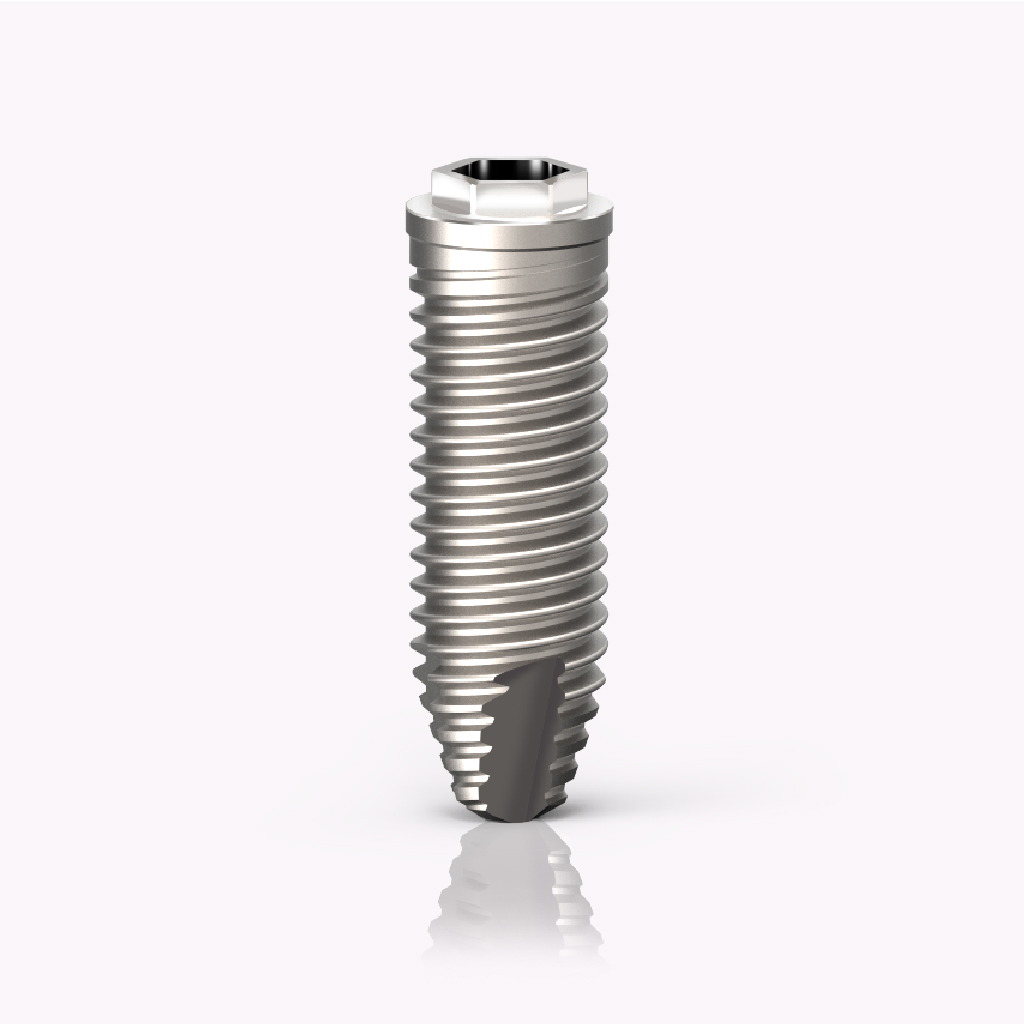

HE Extract

Characteristics

Hybrid Implant: Cylindrical with conical apex
External hexagon prosthetic connection
Double thread (insertion more easily and quickly)
Prosthetics deck 4.1 mm
Indicated for bone III and IV and after exodontia
Screw supplied separately

	9 mm	10 mm	11 mm	13 mm	15 mm
Ø 3.75	ITRNC 309	ITRNE 315	ITRNC 311	ITRNC 313	ITRNC 315
Ø 4.0	ITRNC 409	ITRNA 4313	ITRNC 411	ITRNC 413

	Ø 3.75	Ø 4.0
9 mm	ITRNC 309	ITRNc 409
10 mm	ITRNE 315	ITRNA 4313
11 mm	ITRNC 311	ITRNC 411
13 mm	ITRNC 313	ITRNC 413
15 mm	ITRNC 315

Drill Sequence

	Ø 3.75	Ø 4.0

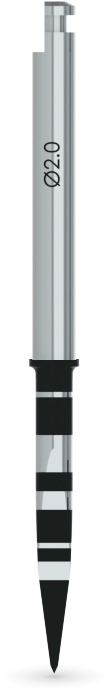

Spear 2.0 703.167	●	●

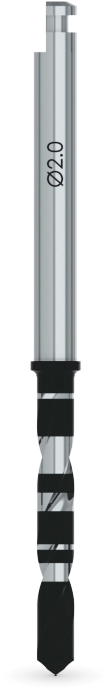

Twist 2.0 703.142	●	●
Pilot 2/3 703.194	●	●

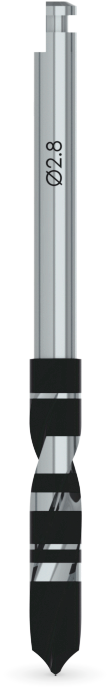

Twist 2.8 703.143	✱	✱

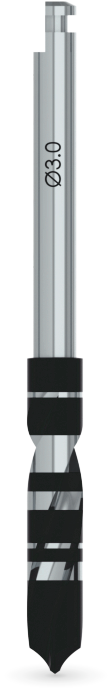

Twist 3.0 703.144	✱	✱

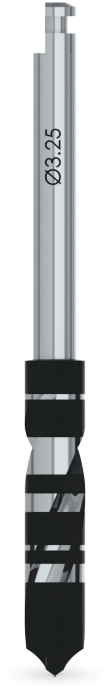

Twist 3.25 703.146		✱

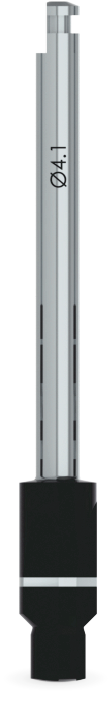

Countersink 4.1 703.063	✱	✱


	Spear 2.0	Twist 2.0	Pilot 2/3	Twist 2.8	Twist 3.0	Twist 3.25	Countersink 4.1

	703.167	703.142	703.194	703.143	703.144	703.146	703.063
Ø 3.4	●	●	●	✱	✱		✱
Ø 4.1	●	●	●	✱	✱	✱	✱

✱ Optional use depending on bone density
